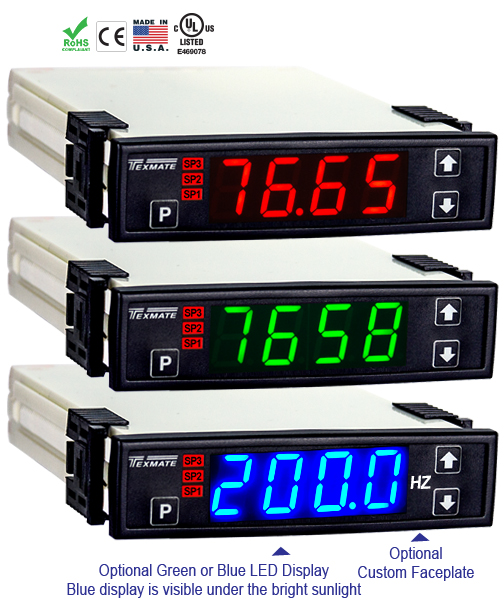

Texmate Panel Meter BL-40PSF-ACV

See other AC Volt Panel Meters

Metal Surround Case

BL-40PSF-ACV

Base Price $260.00

Built-in Programmable Scale Factor, No Input required to calibrate, scalable to read any PT up to 9999V with secondary of 120/240 VAC, 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN Case


Product Information

Download BL-40PSF-ACV Full Manual (PDF).

equalizer Display Options

DR $0.00
Red LED
DG $28.00
Green LED
DB $32.00
0.56" (14mm) Blue LED - visible under bright sunlight.

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA06 $127.00 AC Volts True RMS, 3 ~ 600V AC

IA07 $127.00 AC Volts True RMS, 2V/20V AC

IA12 $127.00 AC mV True RMS, 3 ~ 200mV

IA3V $127.00 AC Volts True RMS, 30mV ~ 3V AC

Custom Display Scaling

Qty Custom digital display scaling within standard ranges, 3/3.5/4 digit meters

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$
SP3 LED Activation

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

Qty Custom analog output range for digital meters and bargraphs

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories

Connectors

Descriptor Adhesive

Metal Surround and Mounting Kit
