Texmate Panel Meter FL-B101D40-RPM

See other RPM / Speed Meters
144x36 metal surround and NEMA4X clear cover Digit on Top

FL-B101D40-RPM

Base Price $319.00

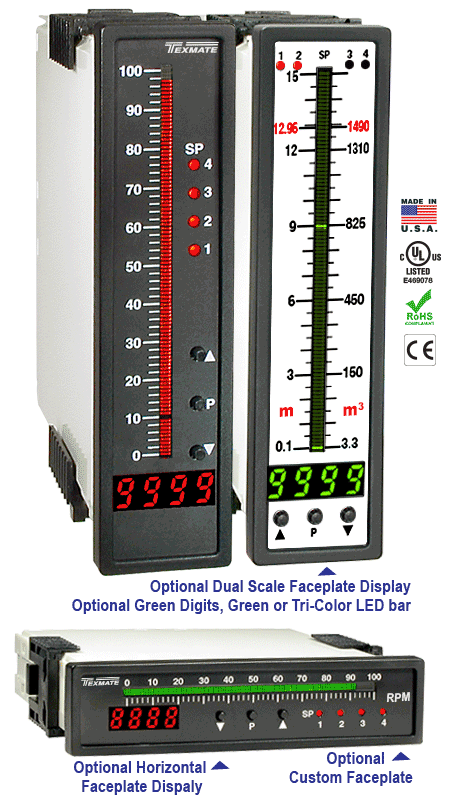

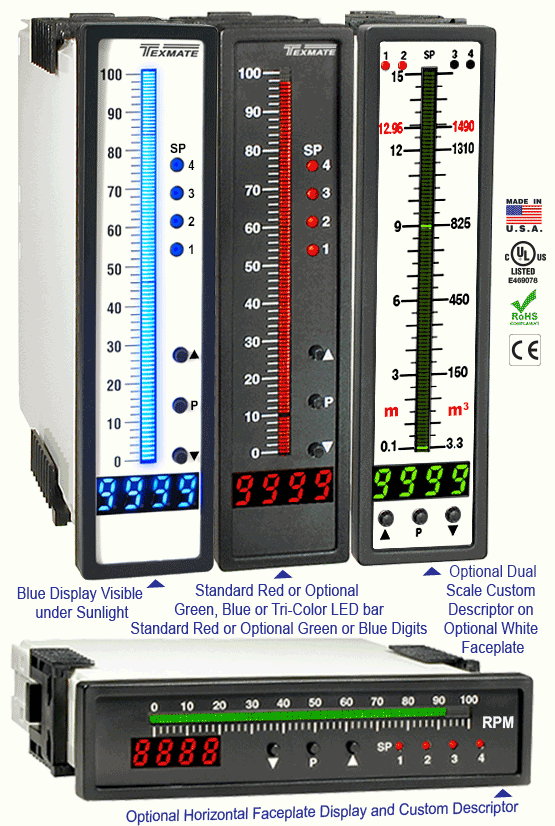

144x36mm, Smart Tri or Mono color digital bargraph with four fully programmable set points for RPM measurement. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED in a 9/64 DIN Case.


Product Information

Download FL-B101D40-RPM Full Manual (PDF).

Panel Cutout Adapter




Panel Cut-Out Trim Plate Set

equalizer Display Options

VTR $50.00
Tri-Color Vertical Bar w/4 Digit Red DPM
VTG $60.00
Tri-Color Vertical Bar w/4 Digit Green DPM
VRRT $22.00
Red LED Vertical Bar w/4 Digit Red DPM
VRR $0.00
Red LED Vertical Bar w/4 Digit Red DPM
VRGT $30.00
Red LED Vertical Bar w/4 Digit Green DPM
VRG $12.00
Red LED Vertical Bar w/4 Digit Green DPM
VGRT $30.00
Green LED Vertical Bar w/4 Digit Red DPM
VGR $18.00
Green LED Vertical Bar w/4 Digit Red DPM
VGGT $35.00
Green LED Vertical Bar w/4 Digit Green DPM
VGG $28.00
Green LED Vertical Bar w/4 Digit Green DPM
HTR $55.00
Tri-Color Horizontal Bar w/4 Digit Red DPM
HTG $66.00
Tri-Color Horizontal Bar w/4 Digit Green DPM
HRR $6.00
Red LED Horizontal Bar w/4 Digit Red DPM
HRG $18.00
Red LED Horizontal Bar w/4 Digit Green DPM
HGR $22.00
Green LED Horizontal Bar w/4 Digit Red DPM
HGG $33.00
Green LED Horizontal Bar w/4 Digit Green DPM
DSTR $55.00
Dual Scale Tricolor LED Bar with 4 Digit Red LED, Vertical orientation
DSTG $66.00
Dual Scale Tricolor LED Bar with 4 Digit Green LED, Vertical orientation
DSRR $6.00
Dual Scale Red LED Bar with 4 Digit Red LED, Vertical
DSRG $18.00
Dual Scale Red LED Bar with 4 Digit Green LED, Vertical
DSGR $22.00
Dual Scale Green LED Bar with 4 Digit Red LED, Vertical
DSGG $34.00
Dual Scale Green LED Bar with 4 Digit Green LED, Vertical

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $50.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

Frequency

Single

IF05 $87.00 Low Volt Frequency / TTL / Proximity Switch / RPM

Custom Display Scaling

Qty Custom bar display scaling within standard ranges
Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
