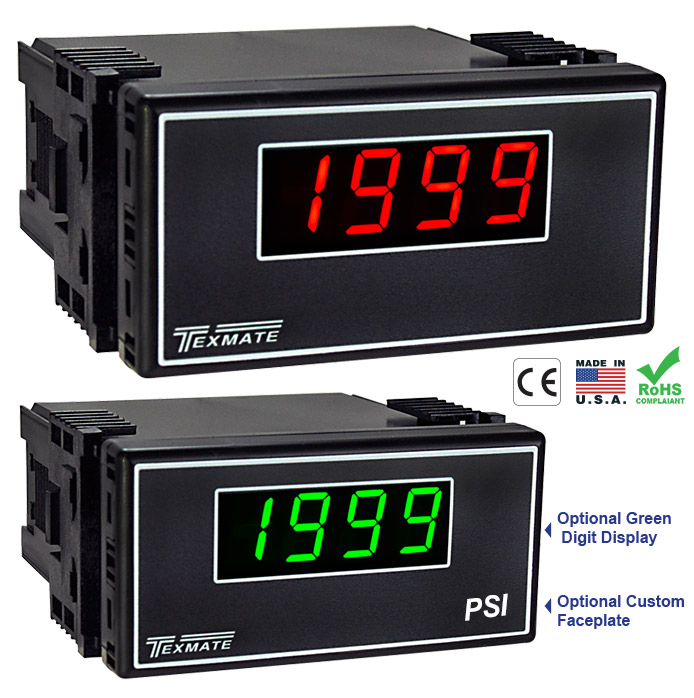

Texmate Panel Meter UM-35-SG



UM-35-SG

Base Price $126.00

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under Special Options tab.

Pressure, Strain Gauge and Load Cell Panel Meter
2/20mV/V, 5/10V Excitation 4-wire
3.5 digit with 0.56” LEDs in a NEMA type 1 Style Case


Product Information

Download UM-35-SG Full Manual (PDF).


equalizer Display Options

UM-GREEN $22.00
Green LEDs, 0.56 inch high
UM-BRIGHT $20.00
Super bright Red LEDs, 0.56 inch high
DR $0.00
Red LED

power_input Power Supply

PS6 $0.00
120/240 VAC 50/60Hz
PS7 $40.00
Isolated auto-sensing 9-36 VDC / 12-24 VAC
PS8 $40.00
5 VDC/200mA

Pressure

Single

IS05 $75.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee

Display Custom Scaling

Qty Custom display scaling within standard ranges

Engineering Services

$ Qty

Range Change

Qty Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.
Non-standard Range and Scale changes.

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
NRC for Artwork & set-up Custom Faceplate and/or Descriptor

Cases and Case Accessories

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
