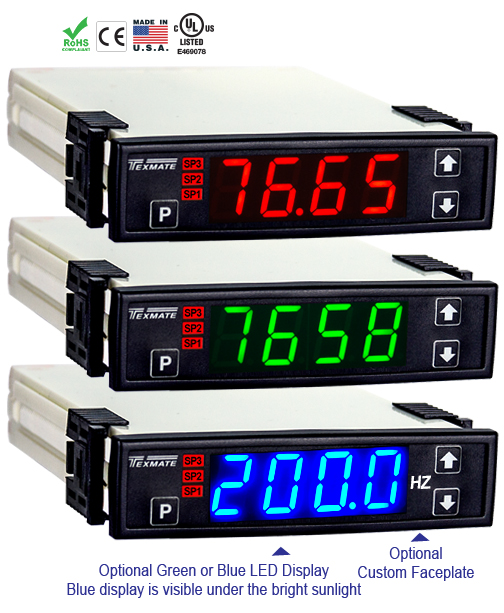

Texmate Panel Meter Controller BL-40PSF

BL-40PSF

Base Price $125.00

96x24mm, Leopard, 4 Digit, PSF

Features & Specifications

Download BL-40PSF Features & Specifications (PDF).

Product Information

Download BL-40PSF Full Manual (PDF).

Certifications, Awards, and Listings

The BL-40PSF is UL Listed.

equalizer Display Options

DR $0.00
Red LED
DG $10.00
Green LED
DB $25.00
Super-bright Red LED

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $35.00
15-48VAC/10-72VDC

AC

Single

IA01 $40.00 AC-Volts Scaled RMS, 200/300V AC

IA02 $40.00 AC-Volts Scaled RMS, 200mV/2V/20V AC

IA03 $45.00 AC-mA Scaled RMS, 2/20/200mA AC

IA04 $45.00 AC-Amps Scaled RMS, 1 Amp AC

IA05 $45.00 AC-Amps Scaled RMS, 5 Amp AC

IA06 $65.00 AC-Volts True RMS, 200/300V AC

IA07 $65.00 AC-Volts True RMS, 200mV/2V/20V AC

IA08 $65.00 AC-mA True RMS, 2/20/200mA AC

IA09 $65.00 AC-Amps True RMS, 1 Amp AC

IA10 $65.00 AC-Millivolt, Scaled RMS, 100mV AC

IA11 $65.00 AC-Amps True RMS, 5 Amp AC

IA12 $65.00 AC-Millivolt, RMS Sigma Delta

Single

ID01 $30.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID02 $40.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc

ID03 $30.00 DC-Milliamp, 2/20/200mA DC w/24V DC Exc

ID04 $60.00 DC-Amps, 5A DC

ID05 $50.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

ID07 $40.00 DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc

ID09 $60.00 DC-Amps, 1A DC

IP07 $35.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom

Single

IF02 $60.00 Line Frequency, 100-140VAC

Single

IR02 $45.00 3 wire Potentiometer, 1kΩ min

IR03 $45.00 Linear Potentiometer, 1kΩ min.

Single

IGYZ $130.00 Universal Direct Pressure (Absolute or Differential/Gage).

IS01 $65.00 Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS02 $65.00 Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS04 $50.00 Pressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire

IS05 $65.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire

IS06 $65.00 Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire

IS07 $75.00 Pressure/Load Cell 20/2mV/V, 4/6-wire with High Impedance and External Excitation

Single

IP01 $40.00 Process Loop, 4-20mA

IP02 $50.00 Process Loop, 4-20mA with 24VDC Exc

IP03 $50.00 Process Input, 1-5V DC with Offset, 24V Exc

None

IPT1 $20.00 Prototype Board for Custom Design

Single

IR05 $45.00 Resistance 2kΩ

Single

IT03 $45.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 800°C)

IT04 $45.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 1470°F)

IT05 $45.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°F)

IT06 $45.00 Thermocouple, J Type (0-1400 °F)

IT07 $45.00 Thermocouple, K Type (0-1999 °F)

IT08 $45.00 Thermocouple, J Type (0-760 °C)

IT09 $45.00 Thermocouple, K Type (0-1260 °C)

IT14 $45.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°C)



Custom Configuration

Installation of custom configuration, specify serial number (CSL-...)
NRC to setup custom configuration file and issue serial number

Custom Output - Relays Installed in Non-Standard Locations

Installation - Relays in non-standard locations, specify serial number
NRC to set-up Relays in non-standard locations

Custom Selectable Range Installation or Modification

Qty Factory installation - custom configuration, specify serial number
NRC to set-up custom selectable range

Custom Special Scaling Beyond the Standard Range

Qty Installation for 3.5 and 4.0 meters, specify serial number
NRC to set-up custom special scaling

Display Custom Scaling

Qty Custom display scaling within standard ranges, 3/3.5/4 digit meters

Engineering Services

$ Qty

Large Run Custom Faceplates

Minimum order of 300 pcs - 2 colors.
Minimum order of 300 pcs - 3 colors.
Minimum order of 300 pcs - 4 colors.
Custom Faceplate - Artwork creation, films & setup.
Custom faceplate Inventory maintenance fee per Design for 2 years.

Output Custom Scaling

Qty Custom scaling of analog output for digital meters and bargraphs

Range Change

Qty Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
Produce and install custom faceplate per meter - 4 color
Custom Faceplate, No minimum - Artwork and setup
