Texmate Panel Meter BN-35I

See other Short Depth DC Powered Process Meters

Push-On Connector Part#CN-PUSH/BN



Base Price $269.00

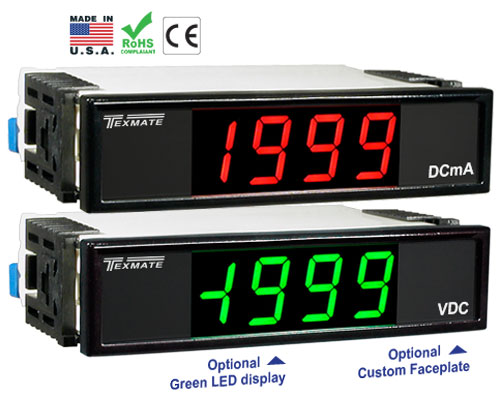

The BN-35 is pin to pin compatible with the Newport model 215. The BN-35I is a cost-effective long-lasting high-quality pin for pin functional replacement for the Newport model 215, with many more features. It is a 3 1⁄2 digit voltmeter in a compact 96x24mm DIN case with an internal iso- lated power supply. 24VDC is standard with optional 12VDC and 15VDC. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has four user-selectable ranges of 200mV, 2V, 20V and 200V. The BN-35I may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Information below). Provision to offset the zero is also available as an option for 4-20mA signals. The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered. Display Segment Test, Display Blank and Hold Reading are standard features. As with the BN-35I, the DIN case is interchangeable with all Texmate meters of a similar form factor. Replacements or repairs are "plug-and-play".

Features & Specifications

Download BN-35I Features & Specifications (PDF).

Product Information

Download BN-35I Full Manual (PDF).

equalizer Display Options

BN-RED $0.00
Red LED Display
BN-GREEN $24.00
3.5 digit, Green LED display
BN-BLUE $28.00
Blue LED Display, Visible under bright sunlight

power_input Power Supply

PS12 $22.00
PS12 Isolated (1.0kV) 12VDC @ 160mA
PS15 $22.00
PS15 Isolated (1.0kV) 15VDC @ 120mA
PS24 $0.00
PS24 Isolated (1.0kV) 24VDC @ 90mA

Choose Your Options ▲

Choose Your Options ▼

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services


Input Range Change

Zero offset 50K Potentiometer.
Range Change from 0 to 200DCmV. Default display scaling 1999, choose ZS for a different display scaling.
Range change from 0 to 200DCV. Default display scaling 1999, choose ZS for a different scaling.
Range change from 0 to 20DCV. Default display scaling 1999, choose ZS for a different scaling.
Factory default input 0 to 2V DC. Default display scaling 1999, choose ZS for a different scaling.

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories


Descriptor Adhesive

Metal Surround and Mounting Kit

Power Supply
