BN-45CL420   Dimmable

Base Price $342.00

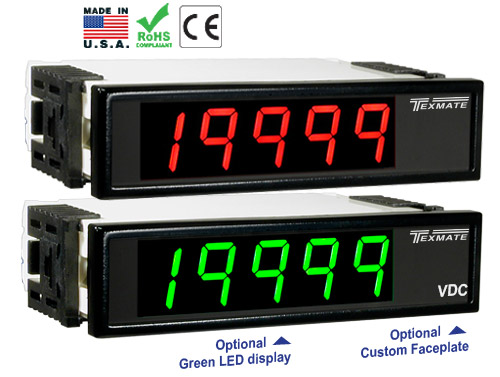

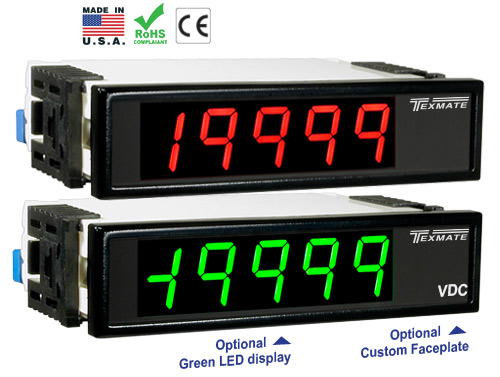

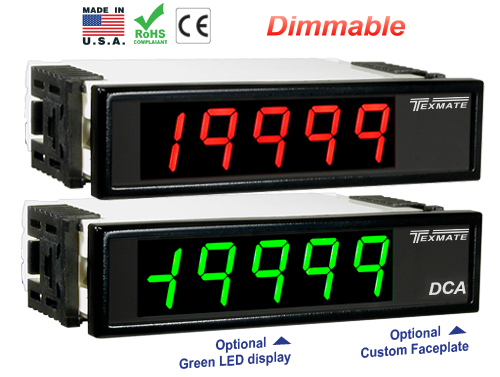

The BN-45CL420 is a 4.5-digit display, dimmable, streamlined 4 to 20mA current loop meter with a default selection of 9-36VDC or optional 36-75VDC power supply (both isolated and autosensing) for your 12V, 24V, and 48VDC applications. It includes special input protection circuitry that can withstand up to 50VDC connection and overcurrents up to 40mA (clamps to 32mA).

The BN-45CL420 is specifically designed to be factory calibrated to almost any conceivable engineering unit, such as temperature, pressure, viscosity, or flow rates etc.

It is in a compact 96x24mm case that has a short depth of just 2.83 inches (72mm) behind the panel.

The display is shipped standard with red LEDs. Blue LEDs that are visible under bright sunlight, and green LEDs are also offered. Display Test, Dim/Blank, and Hold Reading are standard features.


Product Information

Download BN-45CL420 Full Manual (PDF).

equalizer Display Options

BN-RED $0.00
Red LED Display
BN-GREEN4 $28.00
4.5 digit, Green LED Display
BN-BLUE $28.00
Blue LED Display, Visible under bright sunlight

power_input Power Supply

PS7D $45.00
9-36 VDC Auto-sensing with 1.5kV isolation. Approx. 1W. for 12VDC and 24VDC applications.
PS11D $55.00
36-75 VDC Auto-sensing with 1.5kV isolation. Approx. 1W for 48 VDC application.

Choose Your Options ▲


Choose Your Options ▼

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Factory default input 4-20mA. Default display scaling 10000, choose ZS for a different scaling.

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories

Connectors

Descriptor Adhesive
