DI-503-POWER, Function Dedicated Panel Meters, Bargraphs and Controllers - Texmate: Programmable Meter Controllers, Panel Meters, and Bargraphs

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

Volts + Amps

IW04 $171.00 Single Phase Power, 600V/1A

IW05 $195.00 Single Phase Power, 600V/5A

None

IX00 $0.00 Input Omitted. Only applicable to Auto and Manual loader meters.

None

ADC $162.00 Dual Isolated 14 Bit Current Output, 4-20mA (Tiger Series)

ADV $162.00 Dual isolated 14 bit voltage output, 0-10VDC

AIC $96.00 Isolated 14 Bit Current Output, 4-20mA

AIV $96.00 Isolated 14 Bit Voltage Output, 0-10VDC

None

S1 $68.00 Isolated USB communication module (Requires a Cable and a Carrier Board and will be added to the order)

S2 $103.00 Isolated RS-232. (Requires a Cable and a Carrier Board and will be added to the order)

S3 $53.00 Isolated USB communication module with Micro-B connector and 3’ USB cable (included)

S4 $116.00 Isolated RS-485 (Requires a Cable and a Carrier Board and will be added to the order)

S5 $116.00 Isolated Modbus RTU - RS-232, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order)

S6 $129.00 Isolated ModBus RTU - RS-485, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order)

S8 $245.00 Isolated Ethernet output for DI models only. Includes a special Output Carrier Board that accepts analog outputs and I/O modules.

S9 $256.00 Modbus Ethernet output for DI models only. Includes a special Output Carrier Board that accepts analog outputs and I/O modules.

None

OR12 $106.00 Module w/ two isolated 9A Form C relays. All relays outputs are isolated from ground and from the meter.

OR14 $168.00 Module w/ Two x 9A Form C (sp1&2) and Two x 4A Form A relays (sp3 &4). Sp1 & 3 share common. Sp2 & 4 share 2nd common. All relays outputs are isolated from ground and from the meter.

OR23 $146.00 Module w/ Two x 9A Form C (sp1&2) and One 4A Form A. All relays are Isolated

OR25 $128.00 Module w/ One 9A Form C and Two x 4A Form A. All relays are isolated

OR32 $93.00 Module w/ Two x 4A Form A relays. All relays outputs are isolated from ground and from the meter.

OR34 $148.00 Module w/ Four x 4A Form A relays. All relays outputs are isolated from ground and from the meter.

OR46 $203.00 Module w/ Six x 4A Form A relays. Sp1,2 &3 share common. Sp4,5& 6 share common. All relays outputs are isolated from ground and from the meter.

OR54 $147.00 Module w/ Four x 210mA 400V DC Solid State Relays (SSR). All relays outputs are isolated from ground and from the meter.

OR62 $92.00 Module with Two 400V AC (peak) or DC 140mA SSRs

OR65 $151.00 Module with three SSRs (400V DC, 210mA DC max.) & two 5V TTL outputs (relative to COM function pin).

OR72 $116.00 Module w/ Six open collector outputs to drive external SSR's or Logic Input Devices, 5VDC 50mA. All relays outputs are isolated from ground and from the meter.

OR81 $293.00 Module w/ 6 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only

OR82 $409.00 Module w/ 16 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only

OR91 $321.00 Data Acquisition module with Removable 2GB SD card and Two NPN Open Collector Outputs( Max 40VDC 100mA). Sp1 & 2 share a common. All relays outputs are isolated from ground and from the meter.

Custom Configuration

ZCCI $59.00 Install custom configuration file - Tiger
Custom Configuration serial#

Custom Display Scaling

ZS $28.00 Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

ART-RECOVER $33.00 Artwork Data Recovery Fee (per serial number)

OP-LABEL $10.00 Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Z-DESCRIPTOR $30.00 Custom Meter Descriptor

Engineering Services

CCI-SETUP $ One time charge to set up configuration file and assign configuration serial number.

OP-CUSTOM $

Input Range Change

ZR $24.00 Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

ZS-AO $39.00 Qty Custom analog output range for digital meters and bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

ART-FS0 $0.00 Produce and install custom faceplate per meter - 1 color

ART-FS1 $50.00 Produce and install custom faceplate per meter - 1 color

ART-FS2 $55.00 Produce and install custom faceplate per meter - 2 color

ART-FS3 $60.00 Produce and install custom faceplate per meter - 3 color

ART-FS4 $66.00 Produce and install custom faceplate per meter - 4 color

ART-NRC-DEC $109.00 One time charge for custom faceplate design with an assigned serial number. (per serial number)

4" Switchboard Panel Mounting Adapter Plate

OP-PMA/SWBD $39.00 Switch Board Panel Mounting Adapter, 1/8 DIN (96x48mm) Mosaic Fitting

Cables and Serial Communications

91-USB/CBL $18.00 USB Cable

OM-CABLE232 $18.00 RS232: DB9 female to RJ6 phone plug adapter plus 6ft RJ6 Cable

OM-CABLE485 $18.00 RS485: DB9 female to RJ6 phone plug adapter plus 6ft RJ6 Cable

Cases and Case Accessories

75-DBBZ9648F $7.00 Black Bezel for 96x48mm Case.

75-DMTCLIPF $12.00 Mounting Side Clips, extra set (96x48mm case size)

75-DTP2X9624 $17.00 Panel cutout metal trim plate 96x48mm (2x 1/16 DIN &1/8 DIN)

DN.CAS96X48B $39.00 96x48mm Complete Case with Bezel

OP-MTL96X48 $33.00 Metal Surround Case. Cannot be used with the Panel Cutout Reinforcer and the Panel to Case Seal Adaptor. THE "OP-MTLCLIP" (2pc Screw mounting clips) BELOW WILL ALSO BE SELECTED, AS THEY ARE NECESSARY TO INSTALL THE METAL CASE.

OP-MTLCLIP $14.00 Screw Mounting Clips (2pc) to screw tighten slide brackets

Connectors

93-PLUG2P-DH $5.00 Extra Screw Terminal Connector, 2 Pin Power Plug, High Voltage

93-PLUG2P-DR $5.00 Extra Screw Terminal Connector, 2 Pin Plug

93-PLUG3P-DR $7.00 Extra Screw Terminal Connector, 3 Pin Plug

93-PLUG4P-DR $9.00 Extra Screw Terminal Connector, 4 Pin Plug

93-PLUG5P-DR $10.00 Extra Screw Terminal Connector, 5 Pin Plug

93-PLUG6P-DR $11.00 Extra Screw Terminal Connector, 6 Pin Plug

Descriptor Adhesive

75-DESCRIPTR $7.00 Clear adhesive descriptors label for face plate

External DIN Rail Mounting Breakout Box

OP-IDC16/3 $98.00 16pin IDC Cable, 3ft. Used only with ISS7, ISS8, IST1, or IST2 Input modules.

OP-IDC26/3 $108.00 26pin IDC Cable, 3ft. Used only with OR81 and/or OR82 Relay output modules.

OP-TERMBLK16 $126.00 16pin, Din Rail Terminal Block. Used only with ISS7, ISS8, IST1, or IST2 Input modules.

OP-TERMBLK26 $149.00 26pin DIN Rail Terminal Block. Used only with OR81 and/or OR82 Relay output modules.

High Strength Panel Mounting Adapter Kit

OP-PMA96X48 $46.00 Panel Cutout Reinforcer with 2 sets of Slide Mounting Brackets and Screw Mounting Clips. Cannot be used with Metal Surround Case.

Metal Surround and Mounting Kit

75-DRAD35 $24.00 Mounting Kit for DIN Rail Mount

DN-CAS9648R $39.00 DIN Rail Mount Metal Surround with Mounting Clips

NEMA-4X Clear Lockable Water and Dust Proofing Cover

OP-N4X/96X48 $44.00 96x48mm (3.78"x1.89") Clear Lockable NEMA 4X Splash Proof Meter Front Cover

NEMA-4X Panel to Case Seal Adapters

OP-PSA/96X48 $35.00 Panel to Case Seal Adapter with O-Ring and Foam Gasket. Cannot be used with Metal Surround Case.

Short Depth 96x48 Remote Displays

OP-DI/RDISP $76.00 Remote Display Case for DI meters with Cable. OP-DI/RDND is needed and will be add to shopping cart when this option is selected.

OP-DI/RDND $59.00 Remote Display Adapter for DI meters with No Display option. OP-DI/RDISP is needed and will be add to shopping cart when this option is selected.

Utility Software

CF-UTILITY $0.00 Downloadable Tiger Meter/Controller Configuration Utility Software. No technical support is offered for this software.

Function Dedicated Panel Meters, Bargraphs and Controllers

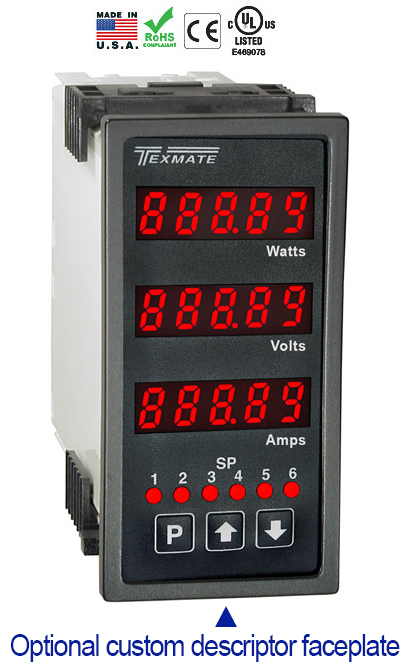

DI-503-POWER

Base Price $576.00

Features & Specifications

Product Information

equalizer Display Options

power_input Power Supply

Choose Your Options ▲

Choose Your Options ▼

Inputs 3

Analog Outputs 4

Serial Outputs 8

Relay Outputs 14

Special Options &Custom Calibration 15

Accessories 29

Power

Volts + Amps

void Input

None

Custom Configuration

Custom Display Scaling

Custom Faceplates and Labels for Meters

Custom Legend on non-membrane type faceplate

Engineering Services

Input Range Change

Output Custom Scaling

Small Run Custom Faceplates for Meters and Bargraphs

4" Switchboard Panel Mounting Adapter Plate

Cables and Serial Communications

Cases and Case Accessories

Connectors

Descriptor Adhesive

External DIN Rail Mounting Breakout Box

High Strength Panel Mounting Adapter Kit

Metal Surround and Mounting Kit

NEMA-4X Clear Lockable Water and Dust Proofing Cover

NEMA-4X Panel to Case Seal Adapters

Short Depth 96x48 Remote Displays

Utility Software

Quantity

Purchase Type

Display Options

Power Supply

Special Options &
Custom Calibration 15
