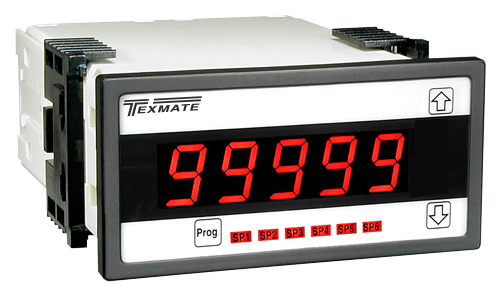

Texmate Panel Meter ST-1510





Texmate Tiger Configuration Utility

Open Tiger Meter/Controller Configuration Utility Instruction (PDF)

Download Free Tiger Meter/Controller Configuration Utility Software for Windows
(This software requires a Serial Output option
in order to be used. No technical support is offered for this software.)

ST-1510

Base Price Call for Price

Position controller

Specification:

  • 5 digits 0.56” red Display
  • Control range 0 to 100.0mm
  • Excitation voltage output [email protected]
  • Accuracy: +/-0.05% of reading
  • 8 Levels Brightness control of LED display from front buttons
  • 6 Annunciators for free seting
  • Serial communication output: USB
  • Analog output: 16 bit 4 to 20mA
  • Program the meter from a PC by use Configuration software.
  • Programmable 125 points Linearization
  • Auto-sensing DC low voltage
    10 ~ 72VDC/14 ~ 48VAC
  • Sensor measure range 0 ~100.0mm
  • A12D 90° cable with lock
  • Sensor Linearity Error +/- 0.15% of FSO
  • Resolution: 0.025% of FSO
  • Termination : IEC-IP67
  • Power consumption 4 watts
