Lynx Digital Panel Meters, Indicators, and Bargraph Controllers
DX-45
Base Price $208.00

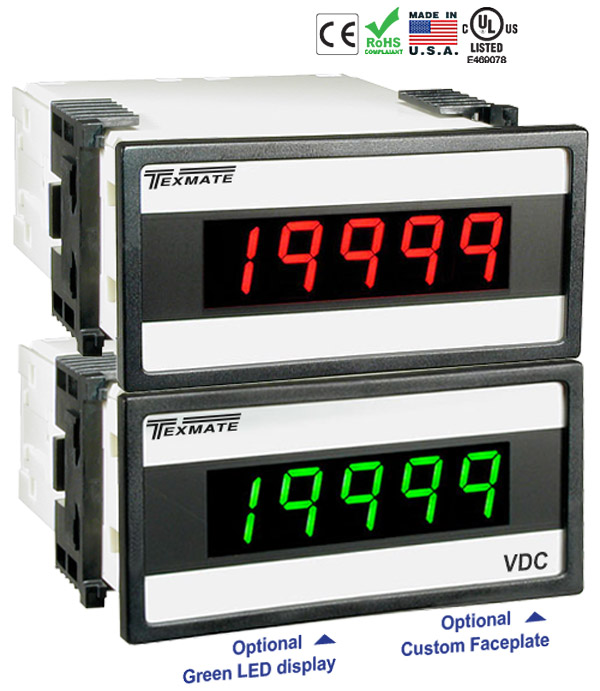

96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Lynx, 4.5 Digit
Features & Specifications
Download DX-45 Features & Specifications (PDF).
Product Information
Download DX-45 Full Manual (PDF).
Certifications, Awards, and Listings
equalizer
Display Options
DR
$0.00
Red LED
DG
$28.00
Green LED
DB
$32.00
0.56" (14mm) Blue LED - visible under bright sunlight.
power_input
Power Supply
PS1
$0.00
85-265VAC/95-300VDC
PS2
$55.00
15-48VAC/10-72VDC
Choose Your Options ▲
Choose Your Options ▼
* One input
module needs to be selected to complete the order.
*
Factory pre-installed range is in
bold
type. For other standard ranges, select
ZR
under the Special Options tab.
Inputs
31
Analog Outputs
0
Serial Outputs
0
Relay Outputs
0
Special Options &
Custom Calibration
12
Accessories
19
AC
Single
IA06
$127.00 AC Volts True RMS, 3 ~
600V AC
IA07
$127.00 AC mV True RMS, 3 ~
200mV
IA08
$119.00 AC-mA True RMS, 2/
20
/200mA AC
IA09
$119.00 AC-Amps True RMS,
1 Amp AC
IA11
$127.00 AC-Amps True RMS,
5 Amp AC
IA3V
$127.00 AC Volts True RMS, 30mV ~
3V AC
DC and Process
Single
ID01
$75.00 DC-Volts,
2
/20/200V/Custom w/24V DC Exc
ID02
$86.00 DC-Millivolt, 20/50/
100
/200mV DC w/24V DC Exc
ID03
$86.00 DC-Milliamp, 2/
20
/200mA DC w/24V DC Exc
ID04
$105.00 DC-Amps,
5A DC
ID05
$93.00 DC-Volts
2
/20/200/Custom V DC w/Offset and 24V Exc.
ID07
$87.00 DC-Milliamp, 2/
20
/200mA DC w/Offset and 24V Exc
ID09
$105.00 DC-Amps,
1A DC
Frequency
Single
IF02
$93.00 Line Frequency, 15 to 199.9 Hz
Linear/Position
Single
IR02
$75.00 3 wire Potentiometer, 1kΩ min
Pressure
Single
IGYZ
$213.00 Universal Direct Pressure (Absolute or Differential/Gage).
IS05
$108.00 Pressure/Load Cell, 20/
2mV/V
, 5/
10V
Excitation, 4-wire
IS06
$106.00 Pressure/Load Cell External Excitation, 20/
2mV/V
, 4-wire
Process
Single
IP01
$75.00 Process Loop,
4-20mA
IP02
$86.00 Process Loop,
4-20mA
with 24VDC Exc
IP03
$86.00 Process Input,
1-5V DC
with Offset, 24V Exc
Temperature
Single
IT03
$93.00 RTD, 100Ω Pt. 2/
3
/4-wire (-200 to 800°C) (Lynx only)
IT04
$93.00 RTD, 100Ω Pt. 2/
3
/4-wire (-200 to 1470°F) (Lynx only)
IT05
$93.00 RTD, 100Ω Pt. 2/
3
/4-wire (-199.0 to 199.0°F) (Lynx only)
IT06
$93.00 Thermocouple, J Type (0-1400 °F) (Lynx only)
IT07
$93.00 Thermocouple, K Type (0-1999 °F) (Lynx only)
IT08
$93.00 Thermocouple, J Type (0-760 °C) (Lynx only)
IT09
$93.00 Thermocouple, K Type (0-1260 °C) (Lynx only)
IT14
$93.00 RTD, 100Ω Pt. 2/
3
/4-wire (-199.0 to 199.0°C) (Lynx only)
special Input
Single
IA05
$118.00 AC-Amps Scaled RMS,
5 Amp AC
void Input
None
IX00
$0.00 Input Omitted. Only applicable to Auto and Manual loader meters.
Custom Display Scaling
ZS
$28.00
Qty
Custom digital display scaling within standard ranges
Custom Faceplates and Labels for Meters
OP-LABEL
$10.00
Add a customer's product code to the meter label.
Custom Legend on non-membrane type faceplate
Z-DESCRIPTOR
$30.00
Custom Meter Descriptor
Engineering Services
OP-CUSTOM
$
External Decimal Selection Board
OP-DXEXTDP
$45.00
Qty
External Decimal Point Selection Board Factory Installed. A CN-L18 edge connector will be added to your order to work with this board.
Input Range Change
ZR
$24.00
Qty
Input Range Change from Standard Range shown in
BOLD
Type. Please specify range when ordering.
Small Run Custom Faceplates for Meters and Bargraphs
ART-FS1
$50.00
Produce and install custom faceplate per meter - 1 color
ART-FS2
$55.00
Produce and install custom faceplate per meter - 2 color
ART-FS3
$60.00
Produce and install custom faceplate per meter - 3 color
ART-FS4
$66.00
Produce and install custom faceplate per meter - 4 color
ART-FS5
$71.00
Produce and install custom faceplate per meter - 5 color
ART-NRC-DEC
$109.00
One time charge for custom faceplate design with an assigned serial number. (per serial number)
4" Switchboard Panel Mounting Adapter Plate
OP-PMA/SWBD
$39.00 Switch Board Panel Mounting Adapter, 1/8 DIN (96x48mm) Mosaic Fitting
Cases and Case Accessories
75-DBBZ9648F
$7.00 Black Bezel for 96x48mm Case.
75-DMTCLIPF
$12.00 Mounting Side Clips, extra set (96x48mm case size)
75-DTP2X9624
$17.00 Panel cutout metal trim plate 96x48mm (2x 1/16 DIN &1/8 DIN)
DN.CAS96X48B
$39.00 96x48mm Complete Case with Bezel
OP-MTL96X48
$33.00 Metal Surround Case. Cannot be used with the Panel Cutout Reinforcer and the Panel to Case Seal Adaptor. THE "OP-MTLCLIP" (2pc Screw mounting clips) BELOW WILL ALSO BE SELECTED, AS THEY ARE NECESSARY TO INSTALL THE METAL CASE.
OP-MTLCLIP
$14.00 Screw Mounting Clips (2pc) to screw tighten slide brackets
Connectors
93-PLUG2P-DH
$5.00 Extra Screw Terminal Connector, 2 Pin Power Plug, High Voltage
93-PLUG2P-DR
$5.00 Extra Screw Terminal Connector, 2 Pin Plug
93-PLUG3P-DR
$7.00 Extra Screw Terminal Connector, 3 Pin Plug
93-PLUG4P-DR
$9.00 Extra Screw Terminal Connector, 4 Pin Plug
93-PLUG5P-DR
$10.00 Extra Screw Terminal Connector, 5 Pin Plug
CN-L18
$20.00 Dual Row 18 Pin Edge Connector, Solder Type
Descriptor Adhesive
75-DESCRIPTR
$7.00 Clear adhesive descriptors label for face plate
High Strength Panel Mounting Adapter Kit
OP-PMA96X48
$46.00 Panel Cutout Reinforcer with 2 sets of Slide Mounting Brackets and Screw Mounting Clips. Cannot be used with Metal Surround Case.
Metal Surround and Mounting Kit
75-DRAD35
$24.00 Mounting Kit for DIN Rail Mount
DN-CAS9648R
$39.00 DIN Rail Mount Metal Surround with Mounting Clips
NEMA-4X Clear Lockable Water and Dust Proofing Cover
OP-N4X/96X48
$44.00 96x48mm (3.78"x1.89") Clear Lockable NEMA 4X Splash Proof Meter Front Cover
NEMA-4X Panel to Case Seal Adapters
OP-PSA/96X48
$35.00 Panel to Case Seal Adapter with O-Ring and Foam Gasket. Cannot be used with Metal Surround Case.
Quantity
Purchase Type
Fully Configured Meter
Parts Only (No Meter Base)
