Texmate Panel Meter Controller FX-B101Q





144x36 metal surround and NEMA4X clear cover

FX-B101Q

Base Price $225.00

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under Special Options tab.

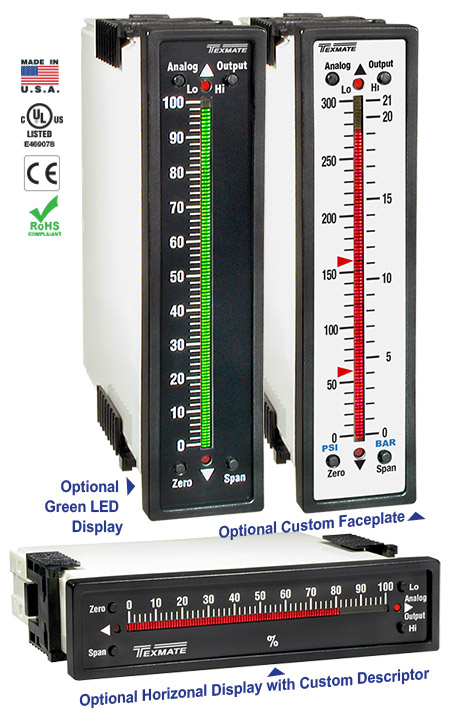

144x36mm, Lynx, 101 Segment Bargraph
Optional Isolated 16 bit, 4-20mA Current or 0-10V DC Voltage analog output

FX-B101Q is being discontinued. Finite quantity in stock. The Replacement model is FL-B101Q.

Features & Specifications

Download FX-B101Q Features & Specifications (PDF).

Product Information

Download FX-B101Q Full Manual (PDF).

Certifications, Awards, and Listings

The FX-B101Q is UL Listed.

Panel Cutout Adapter

equalizer Display Options

VR $0.00
101 Segment Red LED Bar, Vertical
VG $18.00
101 Segment Green LED Bar, Vertical
HR $6.00
101 Segment Red LED Bar, Horizontal
HG $22.00
101 Segment Greed LED Bar, Horizontal

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $40.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

AC

Single

IA06 $107.00 AC-Volts True RMS, 200/600V AC ($8 of IC shortage surcharge included)

IA07 $75.00 AC-Volts True RMS, 200mV/2V/20V AC

IA08 $75.00 AC-mA True RMS, 2/20/200mA AC

IA09 $99.00 AC-Amps True RMS, 1 Amp AC ($24 of IC shortage surcharge included)

IA11 $107.00 AC-Amps True RMS, 5 Amp AC ($18 of IC shortage surcharge included)

Single

ID01 $53.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc ($8 of IC shortage surcharge included)

ID02 $63.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc ($8 of IC shortage surcharge included)

ID03 $55.00 DC-Milliamp, 2/20/200mA DC w/24V DC Exc

ID04 $69.00 DC-Amps, 5A DC

ID05 $75.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc. ($17 of IC shortage surcharge included)

ID07 $55.00 DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc

ID09 $86.00 DC-Amps, 1A DC ($17 of IC shortage surcharge included)

IP07 $67.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom ($8 of IC shortage surcharge included)

Single

IF02 $79.00 Line Frequency, 15 to 199.9 Hz ($10 of IC shortage surcharge included)

Single

IR02 $52.00 3 wire Potentiometer, 1kΩ min

IR03 $52.00 Linear Potentiometer, 1kΩ min.

Single

IGYZ $167.00 Universal Direct Pressure (Absolute or Differential/Gage).

IS05 $83.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire ($8 of IC shortage surcharge included)

IS06 $83.00 Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire ($8 of IC shortage surcharge included)

Single

IP01 $58.00 Process Loop, 4-20mA ($12 of IC shortage surcharge included)

IP02 $68.00 Process Loop, 4-20mA with 24VDC Exc ($10 of IC shortage surcharge included)

IP03 $58.00 Process Input, 1-5V DC with Offset, 24V Exc

Single

IR04 $87.00 Resistance 2kΩ

Single

IT03 $69.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 800°C) ($10 of IC shortage surcharge included)

IT04 $69.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 1470°F) ($10 of IC shortage surcharge included)

IT05 $69.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°F)

IT06 $69.00 Thermocouple, J Type (0-1400 °F) ($17 of IC shortage surcharge included)

IT07 $69.00 Thermocouple, K Type (0-1999 °F) ($17 of IC shortage surcharge included)

IT08 $69.00 Thermocouple, J Type (0-760 °C) ($17 of IC shortage surcharge included)

IT09 $69.00 Thermocouple, K Type (0-1260 °C) ($17 of IC shortage surcharge included)

IT14 $69.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°C)

Single

(IA02) $60.00 Custom AC-Volts Scaled RMS, 200mV/2V/20V AC

(IA03) $60.00 Custom AC-mA Scaled RMS, 2/20/200mA AC

(IA04) $60.00 Custom AC-Amps Scaled RMS, 1 Amp AC

(IA05) $60.00 Custom AC-Amps Scaled RMS, 5 Amp AC


Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per order)

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$ Qty

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
Produce and install custom faceplate per meter - 4 color
NRC for Artwork & set-up Custom Faceplate and/or Descriptor (per order)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
