Texmate Panel Meter Controller DL-40



96x48 metal surround and NEMA4X clear cover

DL-40

Base Price $154.00

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under Special Options tab.

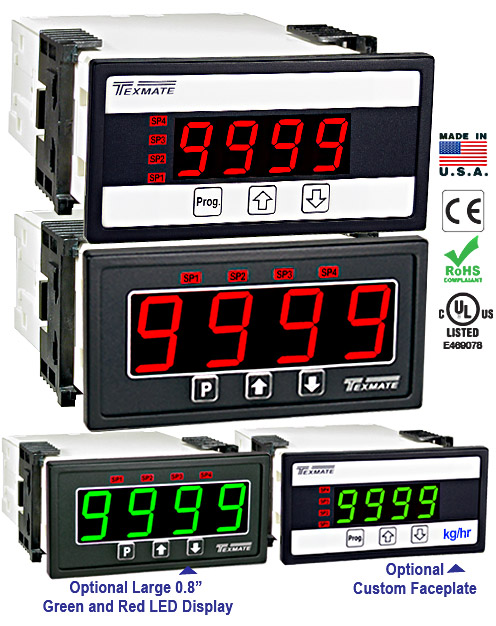

96x48mm, Meter Controller, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case

Features & Specifications

Download DL-40 Features & Specifications (PDF).

Product Information

Download DL-40 Full Manual (PDF).

Certifications, Awards, and Listings

The DL-40 is UL Listed.

equalizer Display Options

LR $28.00
Large Red LED, 0.8 inch high
LG $40.00
Large Green LED, 0.8 inch high
DR $0.00
Red LED
DG $22.00
Green LED, 0.56 inch high
DB $20.00
Super-bright Red LED

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $40.00
15-48VAC/10-72VDC

AC

Single

IA01 $46.00 AC-Volts Scaled RMS, 200/300V AC

IA02 $46.00 AC-Volts Scaled RMS, 200mV/2V/20V AC

IA03 $52.00 AC-mA Scaled RMS, 2/20/200mA AC

IA04 $52.00 AC-Amps Scaled RMS, 1 Amp AC

IA05 $52.00 AC-Amps Scaled RMS, 5 Amp AC

IA06 $75.00 AC-Volts True RMS, 200/300V AC

IA07 $75.00 AC-Volts True RMS, 200mV/2V/20V AC

IA08 $75.00 AC-mA True RMS, 2/20/200mA AC

IA09 $75.00 AC-Amps True RMS, 1 Amp AC

IA11 $75.00 AC-Amps True RMS, 5 Amp AC

DC and Process

Single

ID01 $35.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID02 $46.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc

ID03 $35.00 DC-Milliamp, 2/20/200mA DC w/24V DC Exc

ID04 $69.00 DC-Amps, 5A DC

ID05 $58.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

ID07 $46.00 DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc

ID09 $69.00 DC-Amps, 1A DC

IP07 $41.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom

Frequency

Single

IF02 $69.00 Line Frequency, 15 to 199.9 Hz

Linear/Position

Single

IR02 $52.00 3 wire Potentiometer, 1kΩ min

IR03 $52.00 Linear Potentiometer, 1kΩ min.

Pressure

Single

IGYZ $167.00 Universal Direct Pressure (Absolute or Differential/Gage).

IS01 $75.00 Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS02 $75.00 Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS04 $58.00 Pressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire

IS05 $75.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire

IS06 $75.00 Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire

IS07 $87.00 Pressure/Load Cell 20/2mV/V, 4/6-wire with High Impedance and External Excitation

Process

Single

IP01 $46.00 Process Loop, 4-20mA

IP02 $58.00 Process Loop, 4-20mA with 24VDC Exc

IP03 $58.00 Process Input, 1-5V DC with Offset, 24V Exc

Prototype

None

IPT1 $23.00 Prototype Board for Custom Design

Resistance

Single

IR05 $52.00 Resistance 2kΩ

Temperature

Single

IT03 $52.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 800°C)

IT04 $52.00 RTD, 100Ω Pt. 2/3/4-wire (-200 to 1470°F)

IT05 $52.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°F)

IT06 $52.00 Thermocouple, J Type (0-1400 °F)

IT07 $52.00 Thermocouple, K Type (0-1999 °F)

IT08 $52.00 Thermocouple, J Type (0-760 °C)

IT09 $52.00 Thermocouple, K Type (0-1260 °C)

IT14 $52.00 RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°C)

Case

Alternative Color Choice of 96X48 DIN Case- Black

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee

Custom Legend on non-membrane type faceplate

Up to four characters on non-membrane type faceplate

Display Custom Scaling

Qty Custom display scaling within standard ranges, 3/3.5/4 digit meters

Engineering Services

$ Qty

Output Custom Scaling

Qty Custom scaling of analog output for digital meters and bargraphs

Range Change

Qty Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
Produce and install custom faceplate per meter - 4 color
NRC for Artwork & set-up Custom Faceplate and/or Descriptor

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories

Connectors

High Strength Panel Mounting Adapter Kit

NEMA-4X Clear Lockable Water and Dust Proofing Cover

NEMA-4X Panel to Case Seal Adapters

NEMA-4X Water and Dustproof Membrane Touch Pad Faceplate

Power Supply
