Texmate Panel Meter Controller GI-50TB101

Open Tiger Meter/Controller Configuration Utility Instruction (PDF)

Download Free Tiger Meter/Controller Configuration Utility Software for Windows
(This software requires a Serial Output option
in order to be used. No technical support is offered for this software.)

GI-50TB101

Base Price $889.00

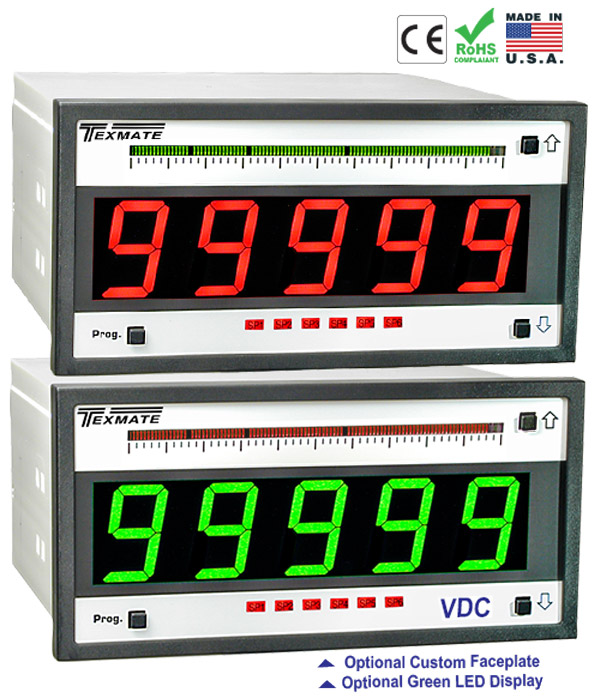

Programmable Meter Controller, 144x72mm, Tiger, 101 Segment Bargraph, 5 Digit 1" (25.4mm) LEDs, T Version

Features & Specifications

Download GI-50TB101 Features & Specifications (PDF).

Product Information

Download GI-50TB101 Full Manual (PDF).

Certifications, Awards, and Listings

Display Options

HRT $50.00
Red 5 Digit LED w/Tri-color Horizontal Bar

HRR $0.00
Red 5 Digit DPM w/Red LED Horizontal Bar

HRG $12.00
Red 5 Digit DPM w/Green LED Horizontal Bar

HGT $60.00
Green 5 Digit LED w/Tri-color Horizontal Bar

HGR $18.00
Green 5 Digit DPM w/Red LED Horizontal Bar

HGG $28.00
Green 5 Digit LED w/Green LED Horizontal Bar

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

Single

IA06 $116.00 AC Volts True RMS, 3 ~ 600V AC

IA07 $116.00 AC mV True RMS, 3 ~ 200mV

IA08 $109.00 AC-mA True RMS, 2/20/200mA AC

IA09 $109.00 AC-Amps True RMS, 1 Amp AC

IA11 $116.00 AC-Amps True RMS, 5 Amp AC

IA3V $116.00 AC Volts True RMS, 30mV ~ 3V AC

Dual

IDD5 $118.00 Dual Input DC Volts and 4-20 mA 2V/4-20mA DC

IDD6 $118.00 Dual Input DC mV and 4-20 mA 50mV/4-20mA DC

IDP2 $139.00 Dual Input, 3-wire RTD and 4-20mA

IDP3 $129.00 Dual Input, Thermocouple (J/K/R/S/T/B/N) and 4-20mA

IDS3 $162.00 Dual Input, Strain Gage and Frequency

IDT3 $139.00 Dual Input, 3-wire RTD and DCV

IDT4 $129.00 Dual Input, Thermocouple (J/K/R/S/T/B/N) and 2VDC Input

IDT6 $159.00 Dual Input, Thermocouple and Load Cell

ISS9 $229.00 Smart Dual Input, Load Cell and Process (4-20mA)

ISSB $231.00 Smart Dual Input, Load Cell and RTD

Triple

ITT3 $175.00 Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 2VDC Input

ITT4 $175.00 Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 4 to 20mA

ITT7 $175.00 Triple Input, T/C (J/K/R/S/T/B/N), 2V DC and 2V DC Input

ITT8 $175.00 Triple Input, T/C (J/K/R/S/T/B/N), 4 to 20mA and 4 to 20mA

Quad

IQT5 $195.00 Quad RTD / V / V / Frequency

Single

IC02 $209.00 Smart Counter (Quadrature)

IC03 $224.00 Smart Quadrature Counter with dual SSRs

Dual

IDC1 $139.00 Dual UP/DOWN Counter

Single

ID01 $68.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID02 $78.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc

ID03 $78.00 DC-Milliamp, 2/20/200mA DC w/24V DC Exc

ID04 $96.00 DC-Amps, 5A DC

ID05 $85.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

ID06 $75.00 DC-Volts 2/20/200/Custom V DC w/Ext.Decimal Select

ID07 $79.00 DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc

ID08 $79.00 DC-Volts, 2/20/200/Custom V DC w/Ext.LIN Table Select

ID09 $96.00 DC-Amps, 1A DC

IP07 $78.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom

IP08 $96.00 Universal Process Input with Autocal 2V/5V/10V/20V/200V/2mA/20mA/Custom

Dual

IDD1 $112.00 Dual DC/Volts, 2V DC

IDD2 $118.00 Dual DC-Millivolts, 50mV DC

IDD3 $118.00 Dual DC-Milliamps, 2mA DC

IDD4 $118.00 Dual Input, DCV and DCmV 2V/50mV DC

Triple

ITD1 $175.00 Triple DC Volts, 2V DC

ITD2 $175.00 Triple DC mV, 50mV DC

Quad

IQD1 $195.00 Quad DC Volts, 2V DC

IQD2 $195.00 Quad DC-Millivolts, 50mV DC

Single Smart

ISD1 $199.00 Smart DC Volts, High Speed 16 bit, 1, 10, 50, 200, 400, 800Hz update rates. Optimized for 50Hz rejection

ISD2 $199.00 Smart DC Volts, High Speed 16 bit, 1, 10, 60, 240, 480, 960Hz update rates. Optimized for 60Hz rejection

ISD3 $229.00 Smart DC Volts, High Speed 16 bit, 1Hz to 800Hz with dual isolated SSR's. Optimized for 50Hz rejection.

ISD4 $229.00 Smart DC Volts, High Speed 16 bit, 1Hz to 960Hz with dual isolated SSR's. Optimized for 60Hz rejection.

ISD5 $297.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz. 50Hz rejection.

ISD6 $297.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz. 60Hz rejection.

ISD7 $348.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz with dual isolated SSR's. 50Hz rejection.

ISD8 $348.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz with dual isolated SSR's. 60Hz rejection.

ISD9 $263.00 Smart Voltage and Resistance Input

Dual Smart

ISDA $225.00 Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (50 Hz rejection)

ISDB $225.00 Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (60 Hz rejection)

Features of Smart Input Modules

On Board Digital Signal Processor
High Accuracy Full Scale Non-linearity +/-0.003% (16 bit) or +/- 0.002% (24 bit ) A/D Conversion
Ultra stable Voltage Reference 10 ppm/˚C
Modules with Single, Dual and Quad Inputs from DCV, Process, Thermocouple, RTD, Potentiometers, Digital, Encoders, Linear Sensors, LVDT, Magnetostrictive, Load Cells and Pressure Sensors.
Up to two on board SSR's on some modules
FREE Configuration Utility to set up averaging, sample rates, channel assignments, etc.

Single

IF06 $121.00 Line Frequency, 60-600V AC UL

IF10 $89.00 Universal Frequency / RPM / UP DOWN Counter

Dual

IDF2 $139.00 Dual Frequency

Dual

ISL1 $356.00 Smart Dual LVDT (50Hz Rejection)

ISL2 $356.00 Smart Dual LVDT (60Hz Rejection)

Single

IR03 $68.00 Linear Potentiometer, 1kΩ min.

Single

ISS1 $218.00 Smart Pressure/Load cell. Standard resolution 16bit (50Hz rejection)

ISS2 $218.00 Smart Pressure/Load cell. Standard resolution 16bit (60Hz rejection)

ISS3 $299.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (50Hz rejection)

ISS4 $299.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (60Hz rejection)

Dual

ISS5 $329.00 Dual Smart Pressure/Load Cell. Standard resolution 16 bit (50Hz rejection)

ISS6 $329.00 Dual Smart Pressure/Load Cell. Standard resolution 16 bit (60Hz rejection)

Triple

ISSC $265.00 Smart Triple Input, Load Cell and two Digital Inputs (Frequency/Counter) Optimized for 50Hz.

ISSD $265.00 Smart Triple Input, Load Cell and two Digital Inputs (Frequenct/Counter) Optimized for 60Hz.

Quad

ISS7 $356.00 Smart Quad Pressure/Load Cell. 50Hz rejection.

ISS8 $356.00 Smart Quad Pressure/Load Cell. 60Hz rejection.

None

ISM1 $263.00 Smart Magnetostrictive Input (recommended for Tiger "T" meters)

Volts + Amps

IW03 $114.00 DC-Watts, 10V/50mV DC

IW04 $156.00 Single Phase Power, 600V/1A

IW05 $178.00 Single Phase Power, 600V/5A

Single

IGYX $220.00 Direct Pressure (Absolute or Differential/Gage) with 2 Digital Inputs.

IGYZ $195.00 Universal Direct Pressure (Absolute or Differential/Gage).

IS01 $99.00 Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS02 $99.00 Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS03 $105.00 Pressure/Load Cell with AutoCal 5/10VDC Exc., 20/2mV/V, 4-wire

IS04 $96.00 Pressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire

IS05 $99.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire

IS06 $97.00 Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire

Dual

IGYY $269.00 Dual Direct Pressure (Absolute or Differential/Gage).

Single

IP01 $68.00 Process Loop, 4-20mA

IP02 $78.00 Process Loop, 4-20mA with 24VDC Exc

IP03 $78.00 Process Input, 1-5V DC with Offset, 24V Exc

IP06 $78.00 Process Loop, 4-20mA with 24VDC Exc and Autocal

IP09 $68.00 4-20mA with External Lin Table select

IP10 $115.00 Process + 3 Digital Inputs

Dual

IDP1 $122.00 Dual Process Loop, 4-20mA

Triple

ITP1 $175.00 Triple Process Loop, 4-20mA

Quad

IQP1 $195.00 Quad Process Loop, 4-20mA

Single

IR01 $68.00 Resistance, 2/3/4-Wire, 200Ω/2kΩ/20kΩ

ISR1 $229.00 Single Smart 3-Wire Potentiometer, 24 bit, 50 Hz

ISR2 $229.00 Single Smart 3-Wire Potentiometer, 24 bit, 60 Hz

Dual

ISR3 $263.00 Smart Dual 3-Wire Potentiometer, 16 bit, 50 Hz

ISR4 $263.00 Smart Dual 3-Wire Potentiometer, 16 bit, 60 Hz

Quad

ISSA $299.00 Smart Quad Potentiometer/ Resistance

Single

IT01 $85.00 Thermocouple (J/K/R/S/T/B/N) (Tiger only)

IT02 $85.00 RTD, 100Ω Pt. 2, 3, or 4-wire (Tiger only)

IT12 $85.00 RTD, 120Ω Nickel 2/3/4-wire (Tiger only)

IT13 $85.00 RTD, 10Ω Copper 2/3/4-wire (Tiger only)

Dual

IDT1 $129.00 Dual Thermocouple (J/K/R/S/T/B/N)

IDT2 $139.00 Dual RTD Input, 2/3-wire, 100Ω Pt

IST5 $263.00 Smart Dual RTD with 0.01 degree resolution. 50Hz.

IST6 $263.00 Smart Dual RTD with 0.01 degree resolution. 60Hz.

Triple

IST7 $299.00 Smart Triple RTD with 0.01 degree resolution(50Hz)

IST8 $299.00 Smart Triple RTD with 0.01 degree resolution(60Hz). IST8 is the replacement for ITT2.

ITT1 $175.00 Triple Thermocouple (J/K/R/S/T/B/N)

ITTC $175.00 Triple RTD Platinum 100Ω RTD 4 wire connection

ITTE $195.00 Triple Input- RTD / RTD / Frequency

ITTF $195.00 Triple Input- Thermocouple / 4-20mA / Frequency

ITTG $195.00 Triple Input- Thermocouple / V / Frequency

Quad

IQT2 $195.00 Quad RTD Platinum 100Ω RTD 2 Wire Connection

IQT4 $195.00 Quad RTD Platinum 100Ω RTD 4 Wire connection

IST3 $303.00 Smart Quad Thermocouple. 50Hz.

IST4 $303.00 Smart Quad Thermocouple. 60Hz.

Six

IST1 $303.00 Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 50Hz.

IST2 $303.00 Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 60Hz.

Single

IH01 $115.00 PH Indication

IH02 $149.00 pH Indication with Automatic Temperature Compensation

Single

IA05 $108.00 AC-Amps Scaled RMS, 5 Amp AC

None

ADC $148.00 Dual Isolated 14 Bit Current Output, 4-20mA (Tiger Series)

ADV $148.00 Dual isolated 14 bit voltage output, 0-10VDC

AIC $88.00 Isolated 14 Bit Current Output, 4-20mA

AIV $88.00 Isolated 14 Bit Voltage Output, 0-10VDC

None

S2 $94.00 Isolated RS-232. (Requires a Cable and a Carrier Board and will be added to the order)

S4 $106.00 Isolated RS-485 (Requires a Cable and a Carrier Board and will be added to the order)

S5 $106.00 Isolated Modbus RTU - RS-232, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order)

S6 $118.00 Isolated ModBus RTU - RS-485, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order)

None

OR12 $98.00 Module w/ two isolated 9A Form C relays. All relays outputs are isolated from ground and from the meter.

OR14 $154.00 Module w/ Two x 9A Form C (sp1&2) and Two x 4A Form A relays (sp3 &4). Sp1 & 3 share common. Sp2 & 4 share 2nd common. All relays outputs are isolated from ground and from the meter.

OR23 $134.00 Module w/ Two x 9A Form C (sp1&2) and One 4A Form A. All relays are Isolated

OR25 $117.00 Module w/ One 9A Form C and Two x 4A Form A. All relays are isolated

OR32 $85.00 Module w/ Two x 4A Form A relays. All relays outputs are isolated from ground and from the meter.

OR34 $135.00 Module w/ Four x 4A Form A relays. All relays outputs are isolated from ground and from the meter.

OR46 $186.00 Module w/ Six x 4A Form A relays. Sp1,2 &3 share common. Sp4,5& 6 share common. All relays outputs are isolated from ground and from the meter.

OR54 $134.00 Module w/ Four x 210mA 400V DC Solid State Relays (SSR). All relays outputs are isolated from ground and from the meter.

OR62 $84.00 Module with Two 400V AC (peak) or DC 140mA SSRs

OR65 $138.00 Module with three SSRs (400V DC, 210mA DC max.) & two 5V TTL outputs (relative to COM function pin).

OR72 $106.00 Module w/ Six open collector outputs to drive external SSR's or Logic Input Devices, 5VDC 50mA. All relays outputs are isolated from ground and from the meter.

OR81 $268.00 Module w/ 6 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only

OR82 $375.00 Module w/ 16 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only

OR91 $294.00 Data Acquisition module with Removable 2GB SD card and Two NPN Open Collector Outputs( Max 40VDC 100mA). Sp1 & 2 share a common. All relays outputs are isolated from ground and from the meter.

R12 $106.00 Two x 9A Form C relays on mainboard. All relays outputs are isolated from ground and from the meter.

R14 $165.00 Two x 9A Form C (sp1&2) and Two x 4A Form A relays (sp3 &4) on mainboard. All relays outputs are isolated from ground and from the meter. Sp1 & 3 share a common. Sp2 & 4 share a 2nd common.

R212 $201.00 R12 and OR12 together. Relays for setpoint 1&2 on both boards will operate in unison.

R2S4 $238.00 R12 and OR54 together. Relays for setpoint 1 & 2 on module board and mainboard will operate in unison.

R414 $308.00 R14 and OR14 together. Relays for setpoint 1, 2, 3 & 4 on module board and main board will operate in unison.

R4S4 $297.00 R14 and OR54 together. Relays for setpoint 1, 2, 3 & 4 on module board and main board will operate in unison.

Custom Configuration

CMP-SETUP $ One time charge of custom macro programming

ZCCI $54.00 Install custom configuration file - Tiger
Custom Configuration serial#

ZINSTL-AP $85.00 Factory installation - macro program, specify serial number
Macro serial#

Custom Display Scaling

CS-BAR $18.00 Qty Custom bar display scaling within standard ranges

ZS $26.00 Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

ART-RECOVER $30.00 Artwork Data Recovery Fee (per serial number)

OP-LABEL $10.00 Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Z-DESCRIPTOR $27.00 Custom Meter Descriptor

Engineering Services

OP-CUSTOM $

Input Range Change

ZR $22.00 Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Memory Upgrade and Real Time Clock Options

OP-F1MB-T $74.00 1Mb EEPROM, for FI-B101D50T only.

Z1MCLK $135.00 1Mb EEPROM with Real Time Clock, for FI-B101D50T only.

Output Custom Scaling

ZS-AO $35.00 Qty Custom analog output range for digital meters and bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

ART-FS1 $45.00 Produce and install custom faceplate per meter - 1 color

ART-FS2 $50.00 Produce and install custom faceplate per meter - 2 color

ART-FS3 $55.00 Produce and install custom faceplate per meter - 3 color

ART-FS4 $60.00 Produce and install custom faceplate per meter - 4 color

ART-NRC-DEC $100.00 One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cables and Serial Communications

OM-CABLE232 $16.00 RS232: DB9 female to RJ6 phone plug adapter plus 6ft RJ6 Cable

OM-CABLE485 $16.00 RS485: DB9 female to RJ6 phone plug adapter plus 6ft RJ6 Cable

Descriptor Adhesive

75-DESCRIPTR $6.00 Clear adhesive descriptors label for face plate

Utility Software

CF-UTILITY $0.00 Downloadable Tiger Meter/Controller Configuration Utility Software. No technical support is offered for this software.

Tiger Panel Meters, Bargraphs and Process Controllers / Micro PLC

GI-50TB101

Base Price $889.00

Features & Specifications

Product Information

Certifications, Awards, and Listings

equalizer Display Options

power_input Power Supply

Choose Your Options ▲

Choose Your Options ▼

Inputs 122

Analog Outputs 4

Serial Outputs 4

Relay OutputsDigital I/OData Logger 20

Special Options &Custom Calibration 18

Accessories 4

Single

Dual

Triple

Quad

Single

Dual

Single

Dual

Triple

Quad

Single Smart

Dual Smart

Features of Smart Input Modules

Single

Dual

Dual

Single

Single

Dual

Triple

Quad

None

Volts + Amps

Single

Dual

Single

Dual

Triple

Quad

Single

Dual

Quad

Single

Dual

Triple

Quad

Six

Single

Single

Custom Configuration

Custom Display Scaling

Custom Faceplates and Labels for Meters

Custom Legend on non-membrane type faceplate

Engineering Services

Input Range Change

Memory Upgrade and Real Time Clock Options

Output Custom Scaling

Small Run Custom Faceplates for Meters and Bargraphs

Cables and Serial Communications

Descriptor Adhesive

Utility Software

Quantity

Purchase Type

Display Options

Power Supply

Relay Outputs
Digital I/O
Data Logger 20

Special Options &
Custom Calibration 18
