Function Specific Panel Meters, Bargraphs and Controllers
BL-40-HZ
Base Price $242.00

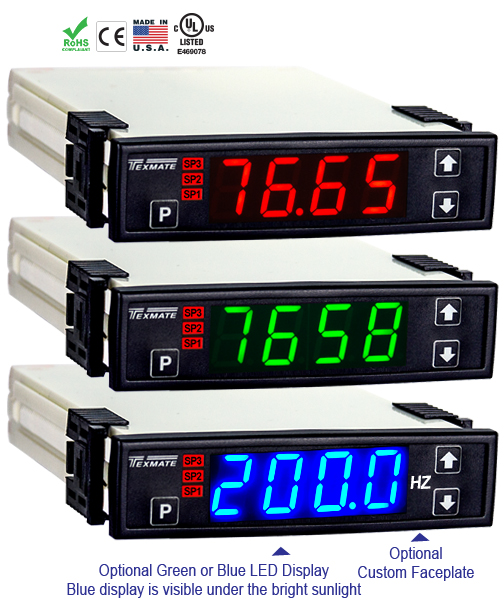

Line Frequency Meter, 4 Digit 0.56” LEDs in a 1/16 DIN CASE
Product Information
Download BL-40-HZ Full Manual (PDF).
equalizer
Display Options
DR
$0.00
Red LED
DG
$22.00
Green LED, 0.56 inch high
DB
$20.00
Super-bright Red LED
power_input
Power Supply
PS1
$0.00
85-265VAC/95-300VDC
PS2
$40.00
15-48VAC/10-72VDC
Inputs
1
Analog Outputs
2
Serial Outputs
0
Relay Outputs
5
Special Options
4
Accessories
11
Frequency
Single
IF08
$53.00 Line Frequency
None
OIC
$42.00 Isolated 16 bit, Current output 4-20mA
OIV
$42.00 Isolated 16 bit voltage output, 0-10V DC
None
R1
$37.00 One 4A Form A Relay, Isolated, Factory installed
R11
$42.00 One 9A Form C Relay, Factory Installed, Isolated
R16
$74.00 One 9A Form C & One 4A Form A Relays, Factory Installed, Non-isolated
R2
$68.00 Two 4A Form A Relays - Factory Installed
R3
$89.00 Three 4A Form A Relays; SP1 & SP2 Common, Factory Installed (Leopard only).
Output Custom Scaling
ZS-AO
$60.00
Qty
Custom scaling of analog output for digital meters and bargraphs
Range Change
ZR
$20.00
Qty
Range Change from Standard Range shown in
BOLD
Type. Please specify range when ordering.
Small Run Custom Faceplates for Meters and Bargraphs
ART-FS-S/D
$100.00
Custom Faceplate, No minimum - Artwork and setup
ART-FS1
$40.00
Produce and install custom faceplate per meter - 1 color
None
Cases and Case Accessories
75-DBBZ96X24
$5.00 Black Bezel for 96x24mm Case.
75-DMTC96X24
$8.00 Mounting Side Clips, Extra Set (96x24mm case size)
75-DTP2X9624
$10.00 Black metal trim plate for two meters.
75-DTP3X9624
$10.00 Black metal trim plate for three meters.
75-DTP96X24
$10.00 Black metal trim plate for a single meter.
DN.CAS96X24L
$30.00 96x24mm Complete Case with Bezel
OP-MTLCLIP
$10.00 Screw Mounting Clips (2pc) to screw tighten slide brackets
Connectors
93-PLUG2P-DP
$3.00 Extra Screw Terminal Connector, 2 Pin Power Plug
93-PLUG2P-DR
$3.00 Extra Screw Terminal Connector, 2 Pin Plug
93-PLUG3P-DR
$5.00 Extra Screw Terminal Connector, 3 Pin Plug
93-PLUG4P-DR
$6.00 Extra Screw Terminal Connector, 4 Pin Plug
Quantity
Purchase Type
Fully Configured Meter
Modules Only (No Meter Base)
