Texmate Panel Meter FX-B101Q-ACA

See other AC Volt / AC Amp Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FX-B101Q-ACA

Base Price Call for Price

Bargraph Meter, AC Amps with RMS Option, isolated 16 bit, Analog outputs -Current 4-20mA or voltage, 0-10V DC, 144x36mm, 101 Segment in a 9/64 DIN CASE

FX-B101Q-ACA is being discontinued.
Finite quantity in stock. The Replacement model is FL-B101Q-ACA.


Product Information

Download FX-B101Q-ACA Full Manual (PDF).

Panel Cutout Adapter

equalizer Display Options

XVR $0.00

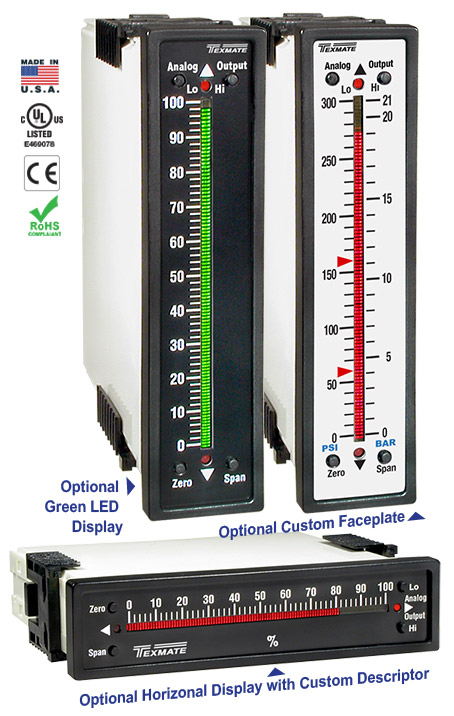

101 segments, 1mm Red LED Bar, Vertical
XVG $22.00
101 segments, 1mm Green LED Bar, Vertical
XVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Visible under bright sunlight
XHR $11.00
101 segments, 1mm Red LED Bar, Horizontal
XHG $33.00
101 segments, 1mm Green LED Bar, Horizontal
XHB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Visible under bright sunlight

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Panel Cut-Out Trim Plate Set

Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA09 $119.00 AC-Amps True RMS, 1 Amp AC

IA11 $127.00 AC-Amps True RMS, 5 Amp AC

IA3V $127.00 AC Volts True RMS, 30mV ~ 3V AC

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Optional Faceplate Color

White background faceplate with black scale of 0 to 100.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
