Function Specific Panel Meters, Bargraphs and Controllers
FX-B101Q-HZ
Base Price $222.00
One input module needs to be selected to complete the order.
Bargraph Meter, AC Line Frequency, 144x36mm, 101 Segment in a 9/64 DIN CASE
Product Information
Download FX-B101Q-HZ Full Manual (PDF).
equalizer
Display Options
VR
$0.00

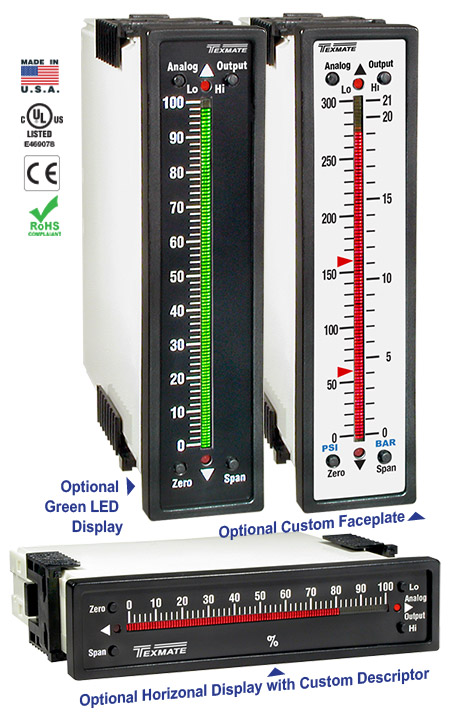

101 Segment Red LED Bargraph, Vertical
VG
$18.00
101 Segment Green LED Bargraph, Vertical
HR
$6.00
101 Segment Red LED Bargraph, Horizontal
HG
$22.00
101 Segment Greed LED Bar, Horizontal
power_input
Power Supply
PS1
$0.00
85-265VAC/95-300VDC
PS2
$40.00
15-48VAC/10-72VDC
Inputs
1
Analog Outputs
2
Serial Outputs
0
Relay Outputs
0
Special Options
2
Accessories
13
Frequency
Single
IF02
$63.00 Line Frequency, 15 to 199.9 Hz
None
OIC
$42.00 Isolated 16 bit, Current output 4-20mA
OIV
$42.00 Isolated 16 bit voltage output, 0-10V DC
Output Custom Scaling
ZS-AOB
$45.00
Qty
Custom scaling of analog output, for Q series bargraphs
Range Change
ZR
$20.00
Qty
Range Change from Standard Range shown in
BOLD
Type. Please specify range when ordering.
None
Cases and Case Accessories
75-DBZ144X36
$5.00 Black Bezel for 144x36mm Case
75-DMC14436B
$10.00 Mounting Slide Clips - Wide (2 pc) 144x36mm Case Size
75-DMC144X36
$10.00 Mounting Side Clips - Standard (2 pc) Extra Set, 144x36mm Case Size
DN.CAS144X36
$38.00 144x36mm Complete Case with Bezel
OP-MTL144X36
$35.00 Metal Surround Case, includes screw mounting clips (OP-MTLCLIP)
OP-MTLCLIP
$10.00 Screw Mounting Clips (2pc) to screw tighten slide brackets
OP-PA/144X36
$15.00 Panel Adapter for 144x36mm meter to fit 6" Edgewise panel cutout
Connectors
93-PLUG2P-DP
$3.00 Extra Screw Terminal Connector, 2 Pin Power Plug
93-PLUG2P-DR
$3.00 Extra Screw Terminal Connector, 2 Pin Plug
93-PLUG3P-DR
$5.00 Extra Screw Terminal Connector, 3 Pin Plug
93-PLUG4P-DR
$6.00 Extra Screw Terminal Connector, 4 Pin Plug
93-PLUG5P-DR
$7.00 Extra Screw Terminal Connector, 5 Pin Plug
NEMA-4X Clear Lockable Water and Dust Proofing Cover
OP-N4/144X36
$35.00 144x36mm clear lockable splash proof front cover - NEMA 4X
Quantity
Purchase Type
Fully Configured Meter
Modules Only (No Meter Base)
