Function Dedicated Panel Meters, Bargraphs and Controllers

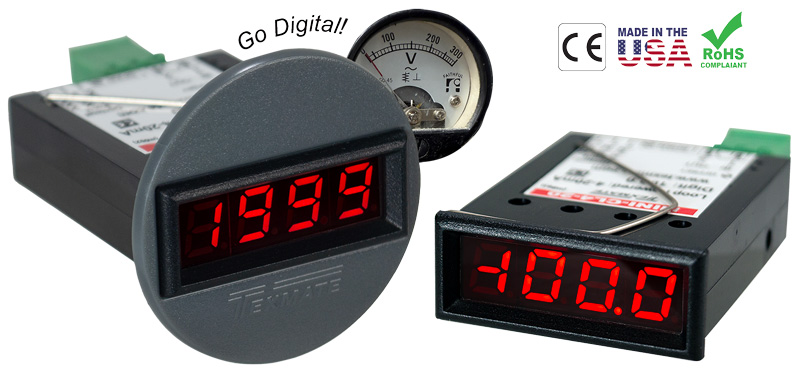

MINI-CL4-20
Base Price $173.00
0.01% Super Accurate Loop powered Mini meter
3 1/2 Digit, 7mm, 0.276” LED
Product Information
Download MINI-CL4-20 Full Manual (PDF).
equalizer

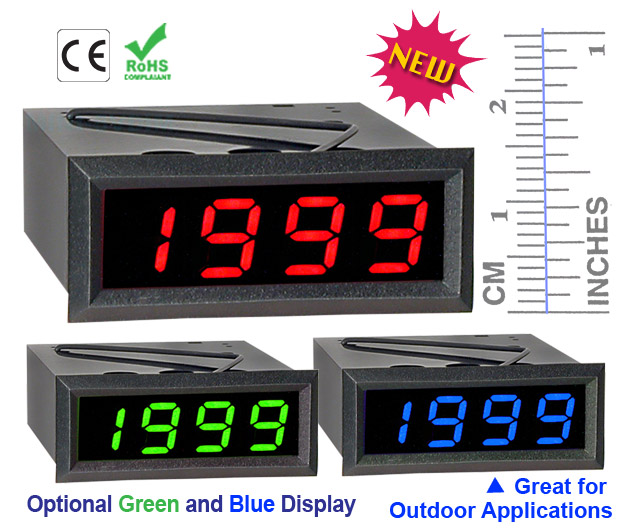

Display Options
7MMR
$0.00
Red LED, 0.276 inch high
7MMG
$10.00
Green LED, 0.276 inch high
7MMB
$15.00
Blue LED, 0.276 inch high
Inputs
0
Analog Outputs
0
Serial Outputs
0
Relay Outputs
0
Special Options
4
Accessories
0
Custom Legend on non-membrane type faceplate
Z-LEGEND
$30.00
Up to four characters on non-membrane type faceplate
Custom Scale Change
ZSMINI420
$24.00
Special scale change for MINI-Series.
Display Custom Scaling
ZS
$24.00
Qty
Custom display scaling within standard ranges
Engineering Services
OP-CUSTOM
$
Qty
Quantity
Purchase Type
Fully Configured Meter
Modules Only (No Meter Base)
