Function Dedicated Panel Meters, Bargraphs and Controllers
See other DC Volt / DC Amp Panel Meters

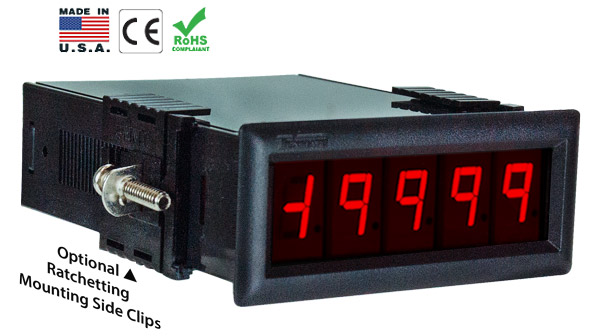

PM-45LU
Base Price $163.00
Discontinued and replaced by PM-45L.
Product Information
Download PM-45LU Full Manual (PDF).
Choose Your Options ▼
Inputs
0
Analog Outputs
0
Serial Outputs
0
Relay Outputs
0
Special Options &
Custom Calibration
8
Accessories
6
Custom Display Scaling
ZS
$28.00
Qty
Custom digital display scaling within standard ranges
Custom Faceplates and Labels for Meters
OP-LABEL
$10.00
Add a customer's product code to the meter label.
Engineering Services
OP-CUSTOM
$
Input Range Change
Z50K
$24.00
Zero offset 50K Potentiometer.
ZR-PM45-200M
$44.00
Range Change from 0 to 200DCmV. Default display scaling 19999, choose ZS for a different display scaling.
ZR-PM45-200V
$44.00
Range change from 0 to 200DCV. Default display scaling 19999, choose ZS for a different scaling.
ZR-PM45-20V
$44.00
Range change from 0 to 20DCV. Default display scaling 19999, choose ZS for a different scaling.
ZR-PM45-2V
$0.00
Factory default input
0 to 2V
DC. Default display scaling 19999, choose ZS for a different scaling.
Cases and Case Accessories
SL.CASERED
$17.00 Slim Bezel Case, Red Window with Mounting Hardware.
Connectors
CN-L10
$11.00 Dual Row 10 Pin Edge Connector, Solder Type.
CN10-PREWIRE
$39.00 Pre-Soldered and Pre-Wired Dual Row 10 Pin Edge Connector with four AGW 22 wires
Power Supply
PS-505
$60.00 General purpose low ripple, regulated power supplies suited for +5V DC powered DPM’s. Provides user selectability for 100-125 V AC or 208-250 V -AC operation.
The PS-505 power supply has been replaced with the PS-510 power supply. The dimensions are identical, and the PS-510 is a complete compatible replacement for the discontinued PS-505.
PS-510
$60.00 5V 1 Amp output. General purpose low ripple, regulated power supplies suited for +5V DC powered DPM’s. Provides user selectability for 100-125 V AC or 208-250 V -AC operation.
(The PS-505 power supply has been replaced with the PS-510 power supply. The dimensions are identical, and the PS-510 is a complete replacement for the discontinued PS-505.)
PS-520
$38.00 5VDC Regulated Power Supply, 2A Output
Quantity
Purchase Type
Fully Configured Meter
Parts Only (No Meter Base)
